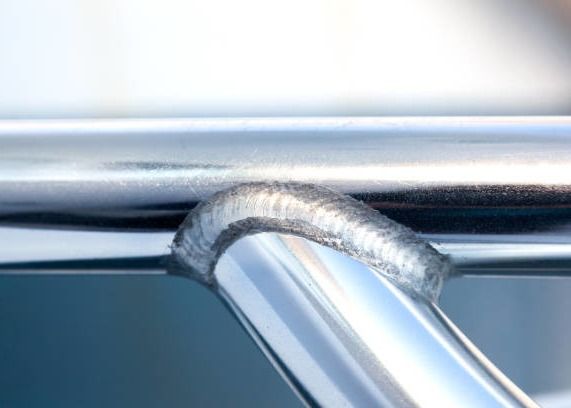

How to Aluminum pipe welding

The steps of aluminum pipe welding:

Aluminum Pipes: Make certain the pipes are of the right grade and size for your project. Thoroughly clean the pipe ends to eliminate any dirt, oil, grease, or oxide layers. Even a minute amount of contaminants can significantly impact weld quality.
Filler Metal: Choose a filler metal that's compatible with the aluminum alloy of the pipes. For general - purpose aluminum welding, the most common filler metals are 4043 (silicon - aluminum) and 5356 (magnesium - aluminum). The diameter of the filler metal should match the thickness of the pipes being welded.
Shielding Gas: Argon is the most prevalently used shielding gas for aluminum welding. It shields the molten weld pool from oxidation. High - purity argon gas (99.99% or higher) is recommended.

Tools for aluminum pipe welding:

Welding Machine: You can use either a TIG (Tungsten Inert Gas) or MIG (Metal Inert Gas) welding machine for aluminum pipe welding. TIG welding generally offers more precise control and is suitable for thinner pipes or high - quality welds. MIG welding is faster and better suited for thicker pipes and large - scale production welding.
For TIG welding, you need a TIG torch, tungsten electrodes (usually thoriated or ceriated tungsten for aluminum), and a foot pedal or hand - held controller to adjust the welding current.
For MIG welding, you require a MIG gun, a wire feeder, and a spool of the selected filler wire.
Cleaning Tools: Employ stainless - steel wire brushes, deburring tools, and solvents to clean the pipe ends.
Cutting: Cut the aluminum pipes to the desired length using a saw with a carbide - tipped blade or a tube cutter. Ensure the cut ends are square and free of burrs.
Beveling: For thicker pipes (usually over 3 mm), bevel the pipe ends at a 30 - 45 - degree angle. This creates a larger joint area for better fusion and stronger welds.

Welding Process:

TIG Welding
Set Up the Welding Machine: Adjust the welding current, voltage, and gas flow rate according to the pipe thickness and the type of filler metal. For instance, for a 2 - mm thick aluminum pipe, a welding current of around 80 - 120 amps might be appropriate. The gas flow rate is typically set between 10 - 20 L/min.
Prepare the Tungsten Electrode: Grind the tungsten electrode to a sharp point. Insert it into the TIG torch and make sure it's properly aligned.
Start the Weld: Strike an arc at the edge of the joint. Keep the tungsten electrode at a constant distance (about 1 - 2 mm) from the workpiece. Heat the joint area until the aluminum starts to melt.
Add Filler Metal: Slowly feed the filler metal into the molten pool. The angle at which you feed the filler metal should be around 15 - 20 degrees relative to the workpiece. Move the torch and feed the filler metal in a steady, smooth motion to create a uniform weld bead.
Weld Travel: Move the torch along the joint at a consistent speed. Avoid pausing for too long in one spot, as this can lead to overheating and burn - through.
MIG Welding
Set Up the Welding Machine: Adjust the wire feed speed, voltage, and gas flow rate. The wire feed speed determines the amount of filler metal deposited, and the voltage controls the arc length. For a 3 - mm thick aluminum pipe, a wire feed speed of around 5 - 8 m/min and a voltage of 18 - 22 volts might be suitable. The gas flow rate is usually set between 15 - 25 L/min.
Install the Filler Wire: Thread the filler wire through the wire feeder and into the MIG gun. Ensure the wire feeds smoothly.
Start the Weld: Hold the MIG gun at an angle of about 45 - 60 degrees to the workpiece. Start the arc at the edge of the joint and move the gun along the joint in a straight line.
Weld Control: Keep the distance between the gun nozzle and the workpiece constant (usually around 6 - 10 mm). Adjust the gun speed and wire feed speed as necessary to maintain a consistent weld bead.

Post - Weld Treatment:

Inspection: Visually examine the weld for any defects such as porosity, cracks, or lack of fusion. For critical applications, you can also use non - destructive testing methods like X - ray or ultrasonic testing.
Cleaning: After welding, clean the welded area to remove any flux residues (if using flux - cored wires in MIG welding) or discoloration. Use a mild acid solution (such as a mixture of water and phosphoric acid), followed by a thorough rinse with clean water.
Finishing: If needed, you can grind or polish the weld to achieve a smooth surface finish.

Customization:

• Temper customization: T3-T8, T5/T6 options available
• Diameter customization: 0.325inch, 0.13inch options available
• Package customization: Wooden Case, Carton, or Pallet options available
• Packing customization: Carton Box or Wooden Box options available
• Type customization: OEM Sheet Metal Fabrication Parts

We specialize in laser welding and our metal welding parts are suitable for a variety of applications, including welding processes for ship hulls and cabins. Our products offer numerous advantages, including high efficiency, strong connections, flexible design, material savings, and improved load-bearing capacity.

Support and Services:

Our Metal Welding Parts product comes with a comprehensive technical support and service package to ensure your satisfaction:

• Expert advice on product selection, installation, and maintenance
• Technical documentation and user manuals
• Diagnostic and troubleshooting services
• Repairs and replacements for defective or damaged parts
• Product training and education programs

We are dedicated to providing you with the highest level of customer support and service to ensure the optimal performance of your Metal Welding Parts.

Packing and Shipping:

Product Packaging:

• All metal welding parts will be securely wrapped in bubble wrap
• Each part will be placed in a sturdy cardboard box
• The cardboard box will be sealed with packing tape
• The boxes will be labeled with the product name and quantity

Shipping:

• Shipping will be arranged through a reliable carrier
• Shipping fees will be calculated based on the destination and weight of the package
• Customers will receive a tracking number for their package
• Delivery time will vary based on the destination

FAQ:

Q: What kind of metal is used for the welding parts?
A: The metal used for the welding parts is typically carbon steel, stainless steel, or aluminum.
Q: What is the maximum weight capacity for the welding parts?
A: The weight capacity of the welding parts depends on the specific part and its design, but they are typically capable of supporting heavy loads.
Q: Are the welding parts made in China?
A: Yes, our welding parts are made in China.
Q: Can the welding parts be customized?
A: Yes, we offer custom welding parts to meet your specific needs and requirements.
Q: What is the lead time for ordering welding parts?
A: The lead time for ordering welding parts varies depending on the quantity and complexity of the parts, but we strive to provide quick turnaround times to meet your deadlines.
